Automation

2min

Fields are populated via the Automation tab, where you can create Kits. Kits define a set of rules and strategies for identifying the pattern around values you would like to extract from the document. These rules and strategies are referred to as Tools and you can have several Tools within a Kit and can even use multiple Kits to populate a Field with multiple records. Please note that when adding a Kit, the Kit is associated with a single Schema, although you can associate any number of Kits with a given Primary or Sub Schema.

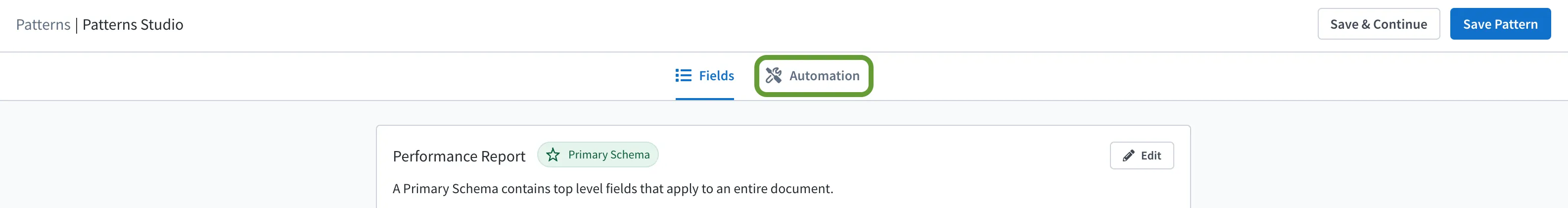

To create a Kit, just locate the "Automation" tab of your Pattern. Please note that you will have to have saved your Pattern and reaccessed it from the Pattern List in order to create a Kit.

Document image

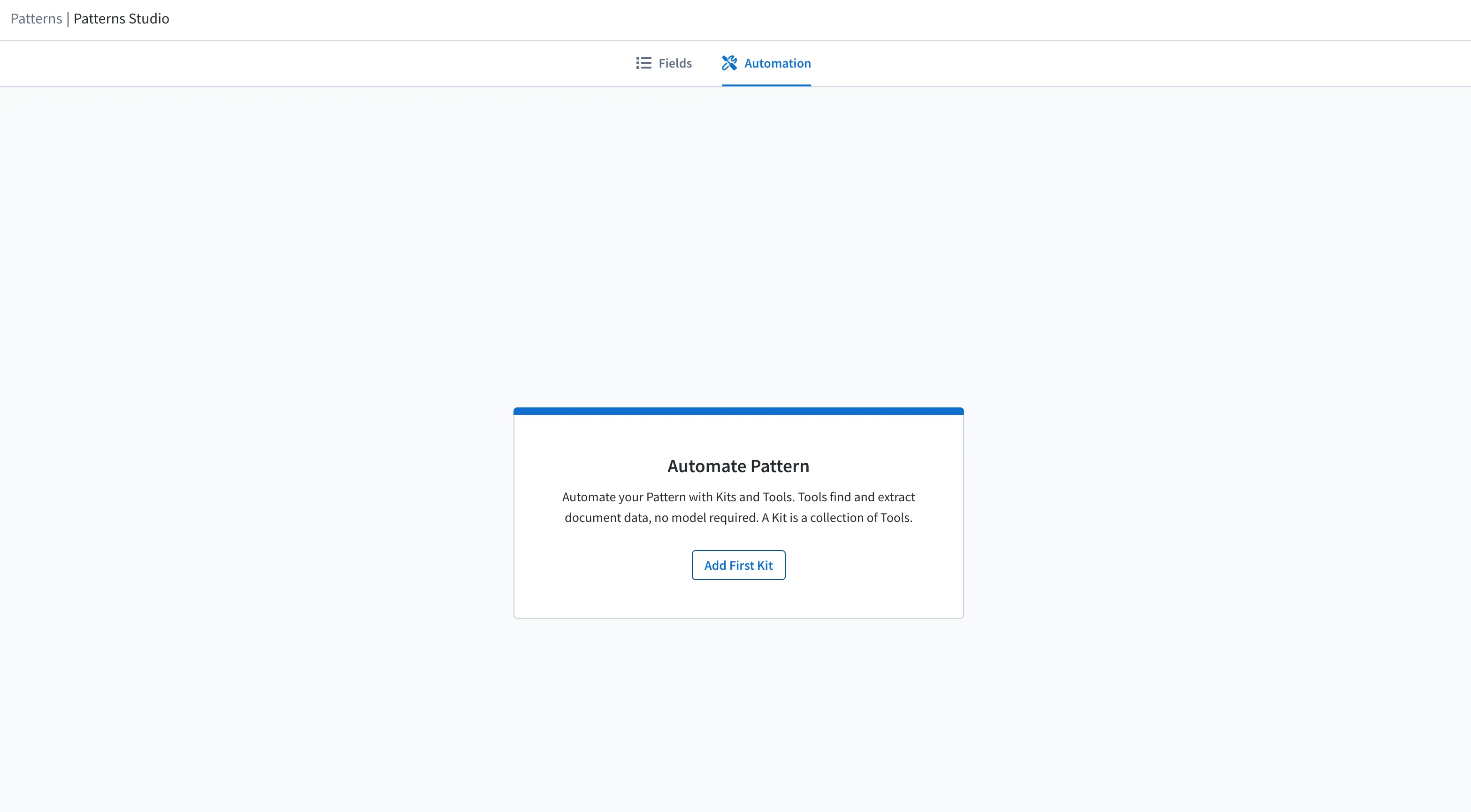

This will then open up the following screen if you haven't added any Kits before:

Document image

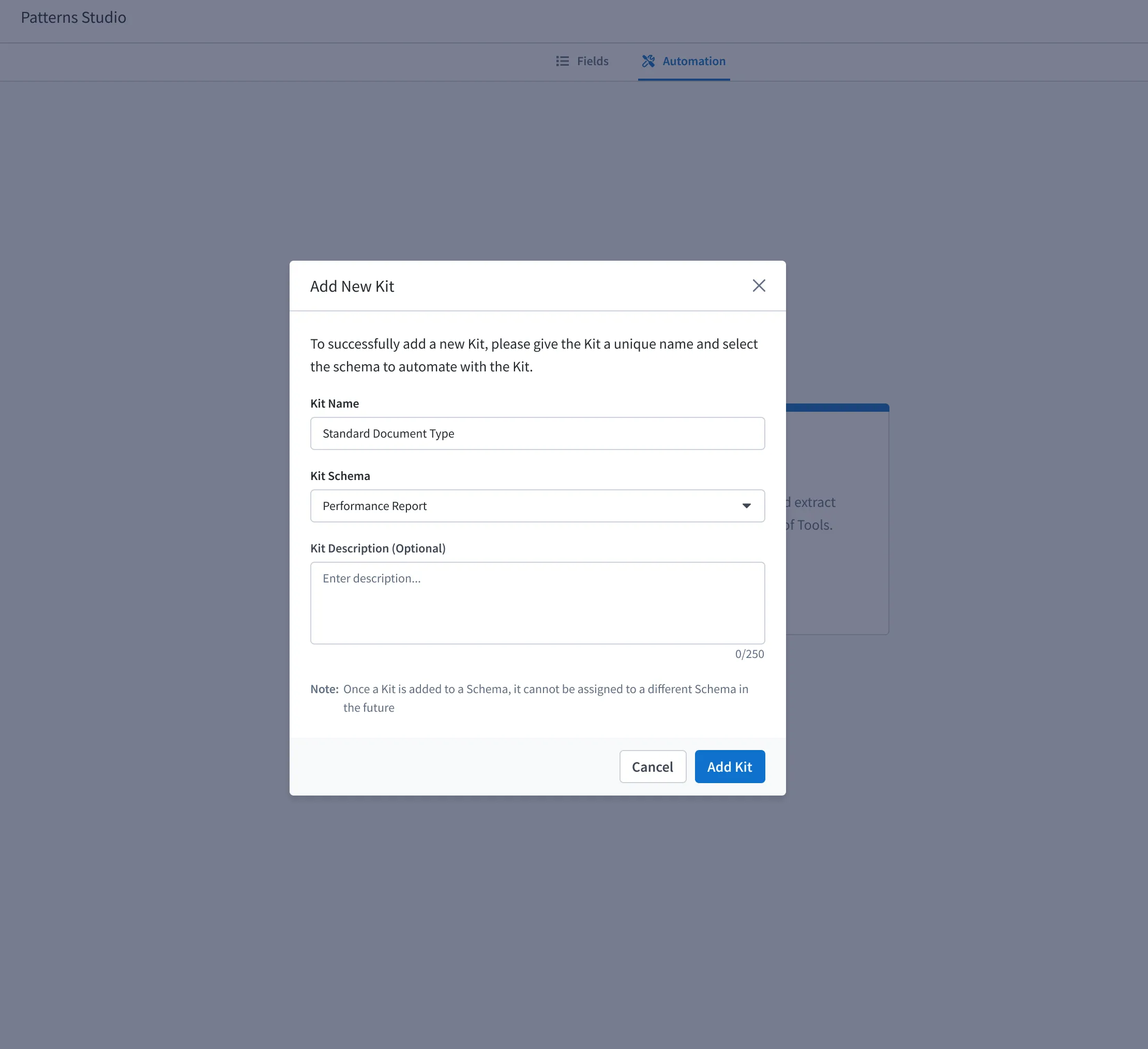

The Kit addition screen allows you to name the Kit (which helps keep you organized if you use multiple Kits on the same Schema) and select a Schema to be associated with it. Selecting the Schema is how you will associate an automation strategy (the Tool) with a specific Field within the Schema.

Document image


Once you add the Kit, you will then be able to add Filters and Tools.

This section of the user guide will cover the following Tools:

Tool

Number of Records

Description

Column Tool

Multiple

Locates data entries contained inside of table columns

Row Tool

Multiple

Locates data entries contained inside of table rows

Text Tool

Single/ Multiple

Locate data contained in free text and other strings

Cell Tool

Single

Locates data contained inside of individual table cells

Constant Tool

Single

Associates a user-defined value with the schema field

Anchor Tool

Single

Establishes a regex to search from identify target values. Particularly useful for identifying values that are consistently in the same place relative to other values.



Updated 03 Mar 2023
